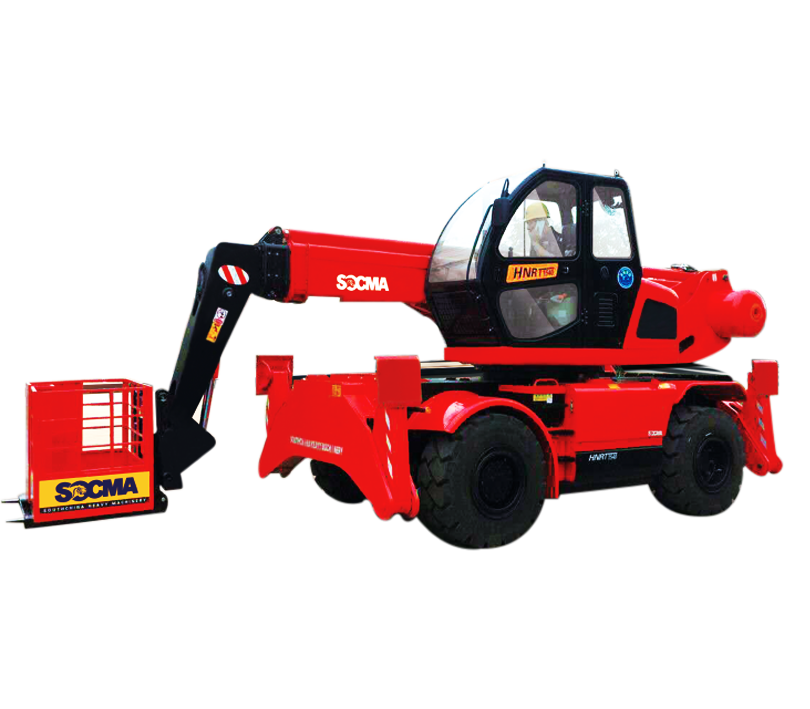

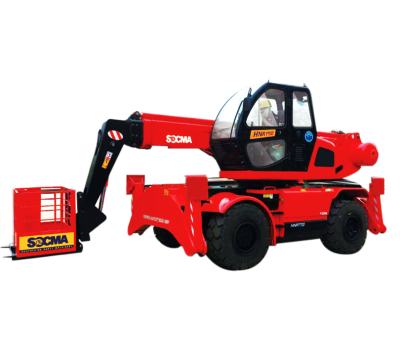

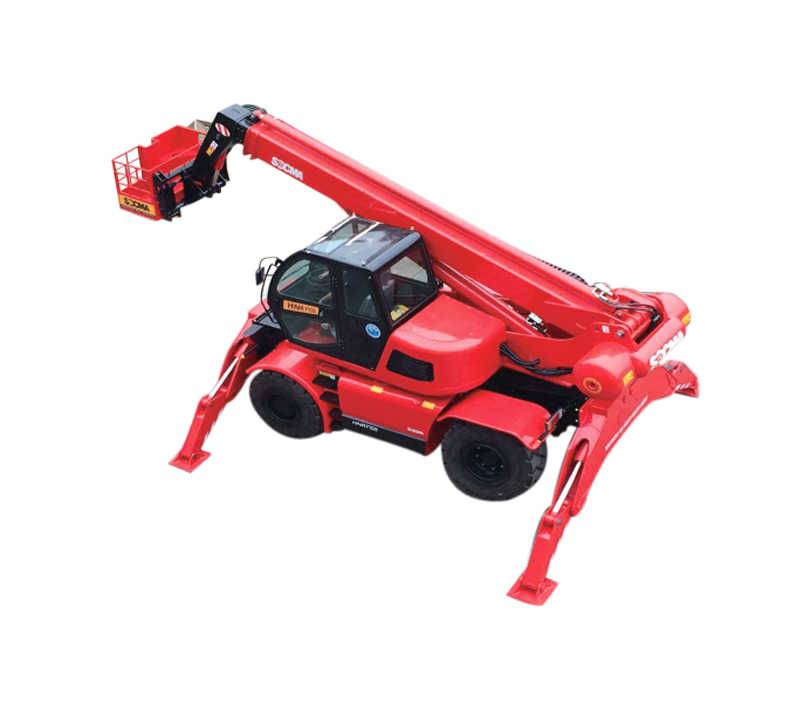

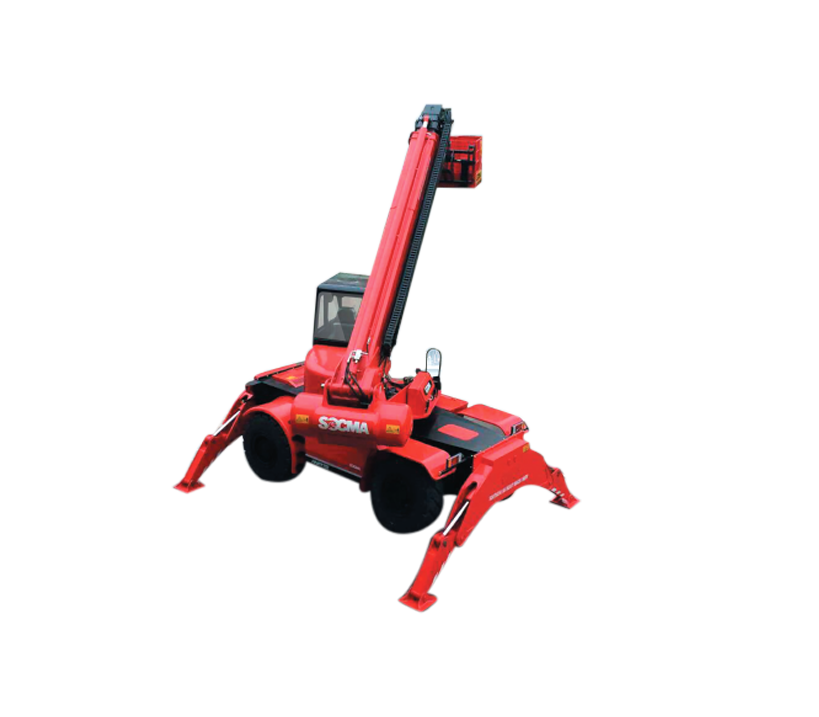

SOCMA TELEHANDLER HNTR4015
Hover over an image to enlarge
(Front/Rear) driving wheel Number:
2/0
(Front/Rear) tire dimension:
45 X 16-20(36PR)
(Front/Rear) Wheel Number:
2/2
Brake air pressure:
0.684-0.785MPa
Emission Standard:
(National Ⅲ)
Front/Rear tilt degree:
12°/120°
Fuel Tank Capacity:
200L
General Dimension (L X W X H):
1200×800×970mm
Grade Ability:
30%
Hydraulic oil tank capacity:
300L
Hydraulic out trigger:
2/2(2f/2r)
Hydraulic system flow:
300L/min
Hydraulic system working pressure:
28MPa
Hydraulic(High Speed/Low Speed):
2/2
Length*width*thickness:
1000mm X 122mm X 50mm
Lifting Height:
15(m)
Load Center:
500mm
Max. Distance between two forks:
710mm
Max. Horizontal Reach:
10.5m
Min. Ground Clearance:
340mm
Overall Height:
3513mm
Overall length(with fork):
7638mm
Overall width:
2550mm
Parking brake:
Air Push Drum Brake
Rated Load Capacity(Lifting):
4000kg
Rated Load Max Horizontal Reach(with outrigger):
800kg
Rated Power:
93Kw/2200r/min
Rear axle steering type:
Transverse Hydraulic Cylinder Steering Structure
Service brake:
Clamp-Disc Brake
Slewing Speed:
3rpm(1500rpm)
Steering Angle:
40°
Steering gear type:
Load Sensing Full Hydraulic Steering
Steering system Pressure:
16MPa
Torque:
480NM/1350(r/min)
Traction Force:
80KN
Transmission gears(Front/rear):
2/2(2F/2R)
Transmission Type:
Hydraulic Static Transmission
Travel speed:
28km/h
Turning Radius:
≥5800mm
Wheel tread:Front:
2030mm
Wheel tread:Rear:
2030mm
Wheelbase:
2800mm
