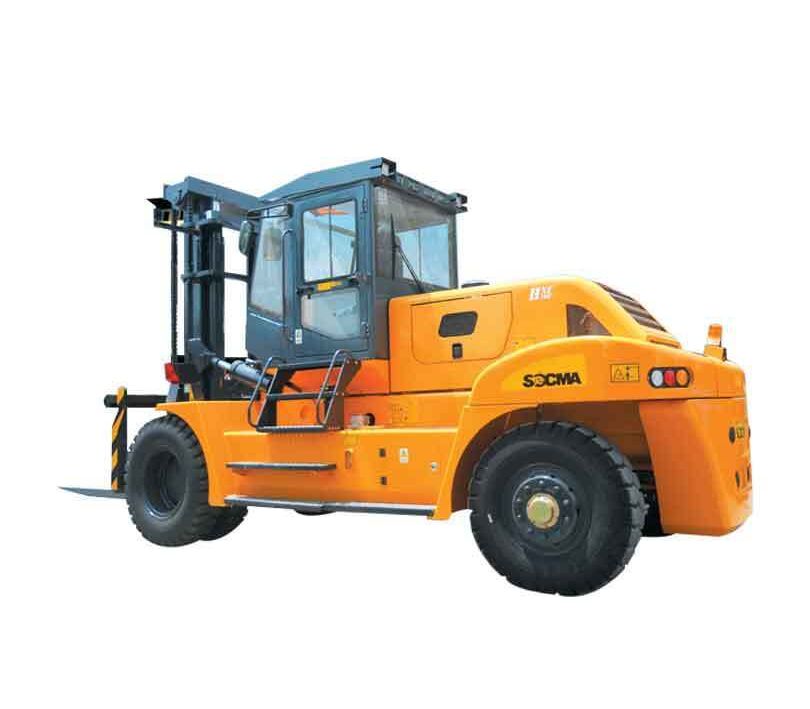

SOCMA FORKLIFT HNF 180

Hover over an image to enlarge

HNF-180
Contact us for a price
In stock
SOCMA

Minimum quantity for "SOCMA FORKLIFT HNF 180" is 1.

Delivery
Payment options
Our advantages

Email NotificationYou receive Email Notificatios about each stage of your order.

Different Payment MethodsPay orders in convenient ways: by L/C on the receipt of the bank or by TT right at the time of the order,cash to the courier.

Best PriceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Attachments using oil amount:
60L/min
Attachments working pressure:
160Bar
Driving brake:
Hydraulic Clamp Disc
Engine Brand:
Yuchai Engine
Fork carriage width:
2380B3(mm)
Fork dimension:
1800X200X100s/e(mm)
Fork front vertical surface to the rear end of the vehicle:
5840L2(mm)
Grade Ability:
20/21%
Height to head guard(height to cab):
3365H6(mm)
Load Center:
900C(mm)
Mast height(fork lowering):
3625H1(mm)
Mast lifting height:
3500H3(mm)
Mast min ground clearance(with load):
265M1(mm)
Mast/carriage tilt angle(front/rear):
6/12˚
Max.lifting height:
5375H4(mm)
Max.Lowering speed(with load/without load):
430/330(mm/s)
Maximum Speed of Lifting:
250/260(mm)
Overall length:
7640L1(mm)
Overall width:
2750B1/B2(mm)
Rated load:
18Q(t)
Traction:
15000N
Transmission gears(Front/rear):
2/1
Travel speed:
26/30(km/h)
Turning Radius:
5800Wa(mm)
Tyre Specs.:Front:
12.00-24-18PR
Tyre Specs.:Rear:
12.00-20-18PR
Tyres Qty,front/rear(X-drive wheels):
4/2
Weight:
25000kg
Wheel tread:Front:
2060B10(mm)
Wheel tread:Rear:
2330B11(mm)
Wheelbase:
3800Y(mm)
Wheelbase center min ground clearance(with load):
325M2(mm)
